PR/0
Gauging and Sampling Pipe, verifiable
Features
Horizontal or Vertical Tanks
Usable for Tank Content Sounding in Horizontal or Vertical Tanks
No Flame Transmission Proof
The PR/0 Is Not Flame Transmission Proof
Connection with other Components
Often Used in Conjunction With Other Components Such as PROTEGO® VP/HK, PS/E, or PG/H
Function and Description
For Tank Content Gauging
The Gauging and Sampling Pipes Type PROTEGO® PR/0 are used for gauging of tank contents in horizontal or vertical tanks. They can be used in combination with other devices as for instance PROTEGO® VP/HK, PROTEGO® PS/E as well as PROTEGO® PG/H.
Level Gauging and Sampling Pipes for Tank Safety

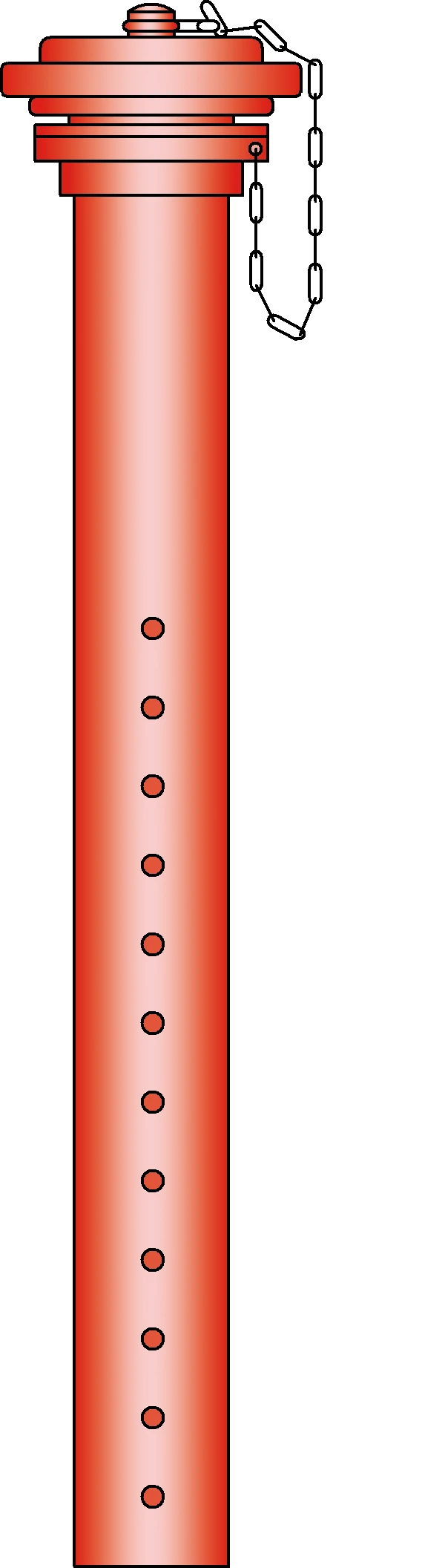

The Gauging and Sampling Pipes Type PROTEGO® PR/0 consist of the gauging and sampling pipe (1), the cap (2) with gasket and the gauge plate (3). In normal operation the gauging pipe is closed with the cap. It is opened only for tank content gauging.
PROTEGO® PR/0 is not flame transmission proof and therefore special safety measures have to be implemented in order to avoid flame transmission into the tank caused by external ignition sources.
Product Data

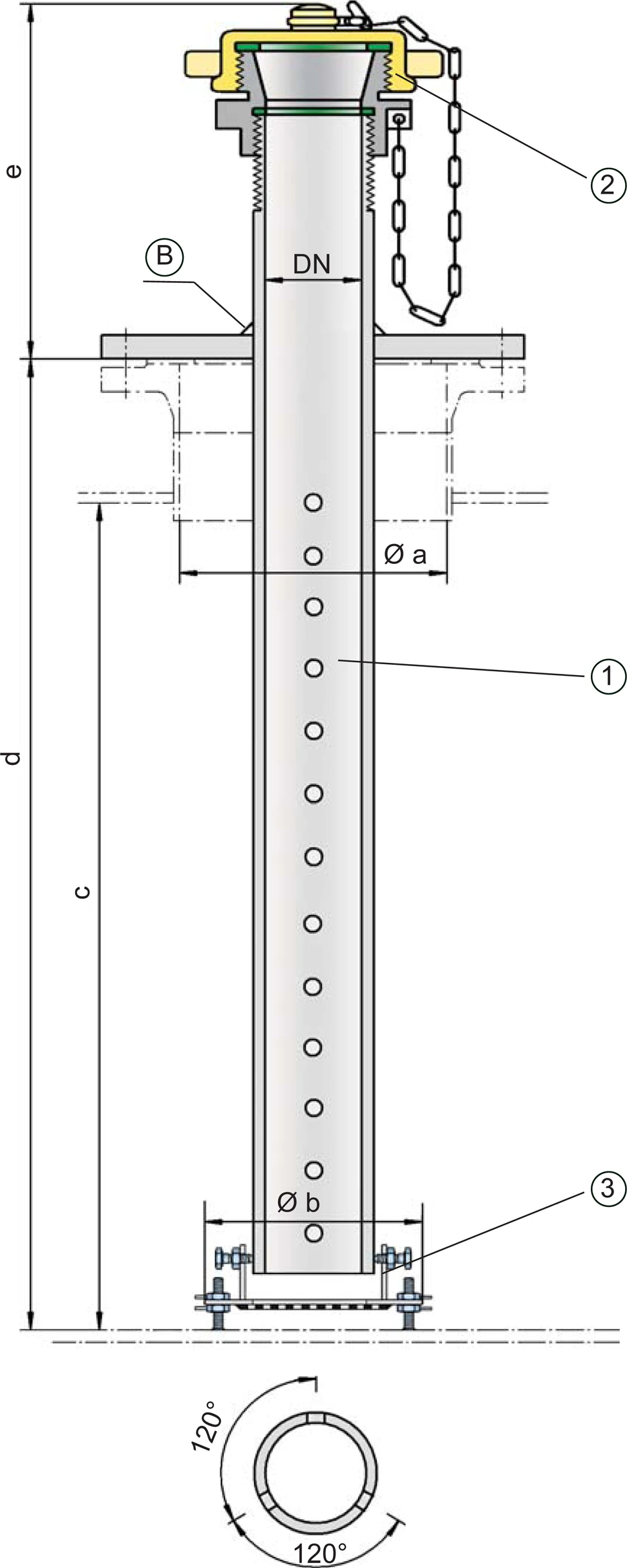

Dimensions
| DN | DN | a | b | number of hole lines |
| 25 | 1" | 32 | - | 1 |
| 32 | 1¼" | 40 | - | 1 |
| 50 | 2" | 80 | - | 2 |
| 80 | 3" | 100 | 305 | 3 |
| 100 | 4“ | 150 / 5.91 | 305 | 3 |
Dimensions in mm / inches
The measures c, d, e, f must be given with the order
Material selection
| Design | A | B |
| Gauging pipe | Steel | Stainless Steel |
| Gauge plate | Steel | Stainless Steel |
| Cap | Brass | Stainless Steel |

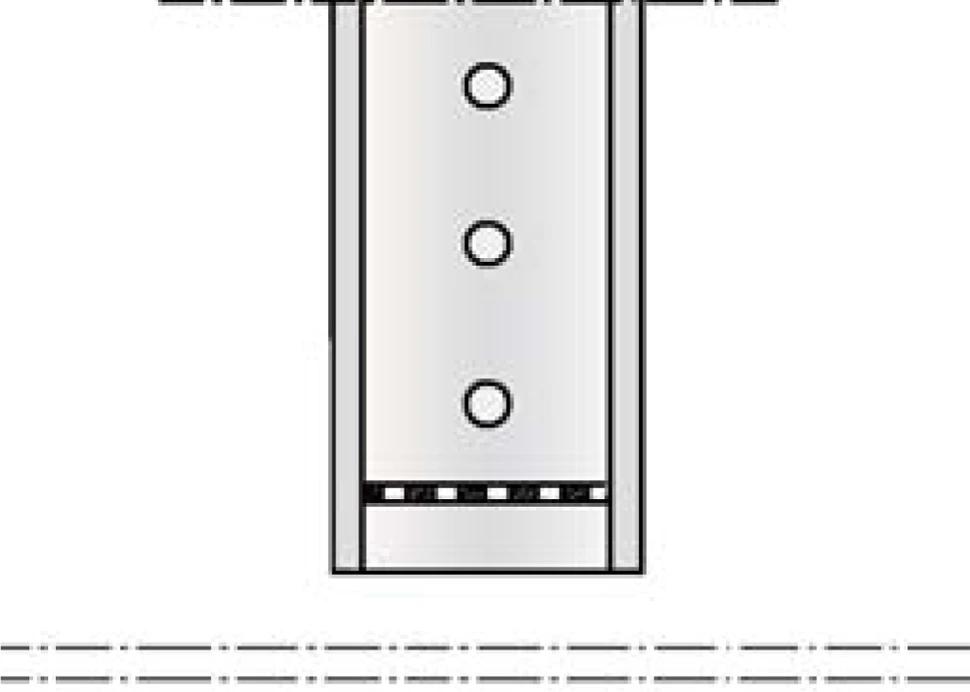

For combination with other gauging device design 1 with welding neck flange is available (from DN 100/4''). Instead of the gauging table PROTEGO® PT/S a perforated bottom can be Chosen alternatively.

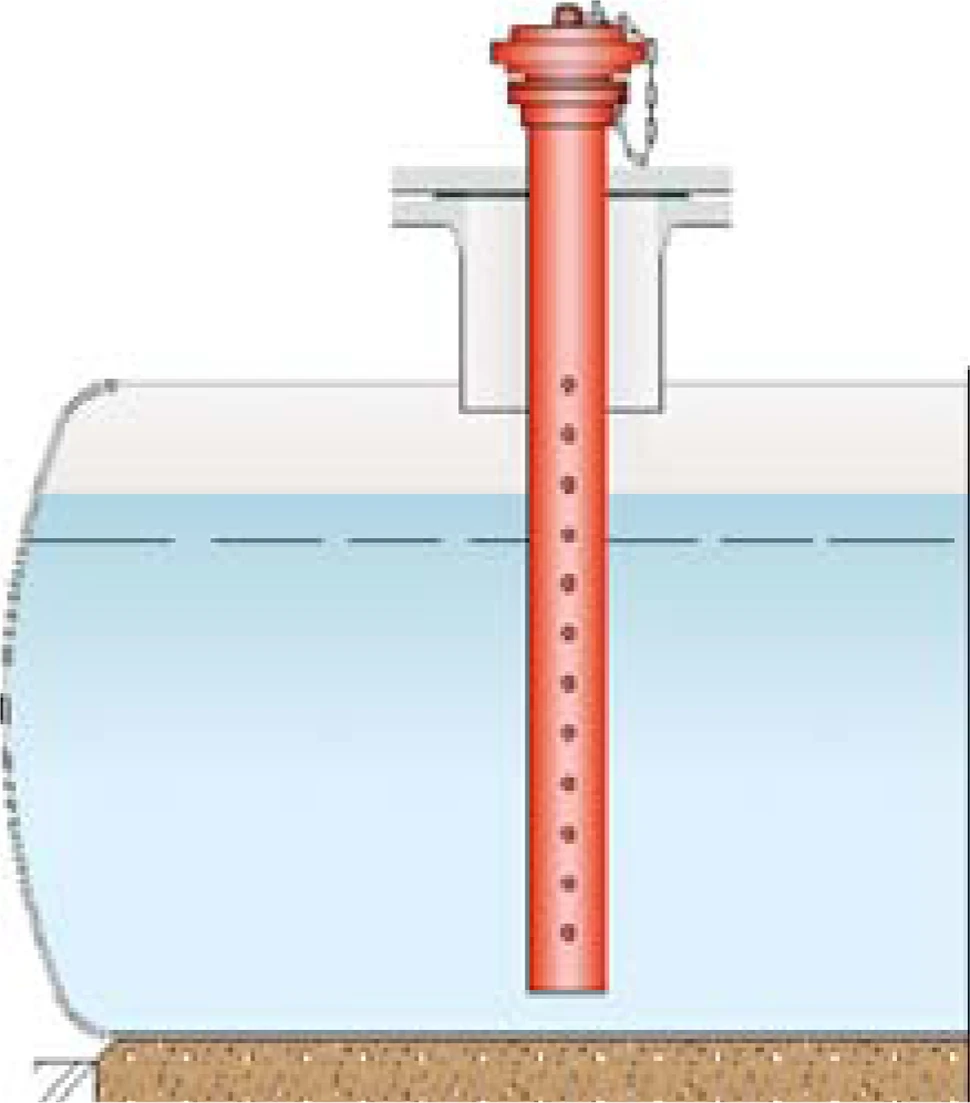

Gauging and Sampling Pipe PROTEGO® PR/0 with perforated bottom for the horizontal tank.

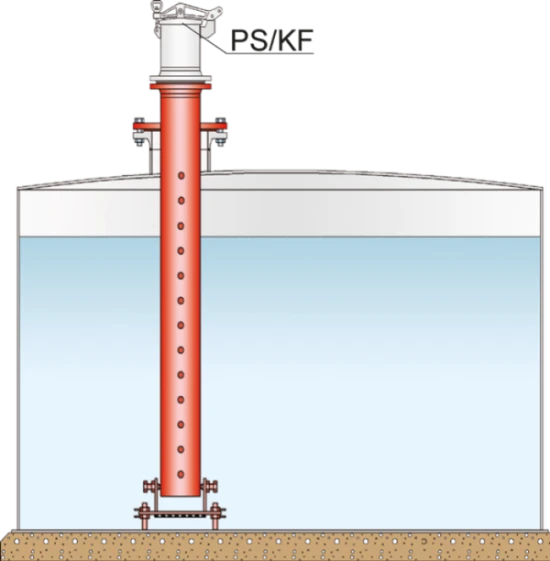

Gauging and Sampling PIpe PROTEGO® PR/0 with gauging table PROTEGO® PS/KF for a vertical tank. Also sampling with a suitable Sampling Pot PROTEGO® PG/H is possible. Information about gauging and sampling device are available in a seperate catalogue sheet.
