PV/EB
Pressure/Vacuum Relief Valve deflagration- and endurance burning-proof
Features
10% Technology
for Minimum Pressure Increase up to Full Lift
Extreme Tightness
Resulting in Lowest Possible Product Losses and Reduced Environmental Pollution
Optimum Pressure Maintenance
Based on 10% Technology, Set Pressure Is Close to Opening Pressure for Optimum Pressure Maintenance in the System as Compared to Conventional 40% or 100% Technology
More Efficient Opening and Closing
Valve Opens Later and Closes Earlier Than Conventional Valves
Guided Valve Pallet
Valve Pallet Is Guided Inside the Housing to Protect Against Harsh Weather Conditions
Protective System According to ATEX
can Be Used as a Protective System in Areas With Potentially Explosive Atmosphere in Accordance With ATEX
Use as Detonation-Proof Check Valve
can Be Used as a Detonation-Proof Valve in Suction Lines of Storage Tanks
Lifting Device
Available in a Special Design With Lifting Device (for Ships)
Modular Design
Allows Replacement and Cleaning of Single FLAMEFILTER®
Intergrated Flame Arrester
Integrated PROTEGO® Flame Arrester Unit Saves Space and Weight and Reduces Costs
Function and Description
Combined Pressure and Vacuum Relief Valve
The Atmospheric Deflagration-Proof and Endurance-Burning-Proof PV/EB Type PROTEGO® valve is a highly developed combined pressure/vacuum relief valve for high flow capacities with an integrated Flame Arrester Unit. It is primarily used as a device for flame transmission proof in-breathing and out-breathing on tanks, containers, and process equipment. The valve offers reliable protection against overpressure and vacuum, prevents the in-breathing of air and product losses almost up to the set pressure, and protects against atmospheric deflagration and endurance burning if stabilized burning occurs.
10%-Technology
The PROTEGO® Flame Arrester Unit is designed to achieve minimum pressure drop with maximum safety. The PROTEGO® PV/EB valve is available for substances from explosion group IIA (NEC group D MESG > 0.9 mm).
When the set pressure is reached, the valve starts to open and reaches full lift within 10% overpressure. This unique 10% technology enables a set pressure that is only 10% below the maximum allowable working pressure (MAWP) or maximum allowable working vacuum (MAWV) of the tank. After years of development, this typical opening characteristic of a safety relief valve is now also available for the low pressure range.
Advanced Manufacturing Technology
The tank pressure is maintained up to the set pressure with a tightness that is above the normal standards due to our stateof- the-art manufacturing technology. This feature is ensured by the valve seats made of high quality stainless steel and with individually lapped valve pallets (1), or with an air cushion seal (2), in conjunction with high quality FEP diaphragm. The valve pallets are also available with a PTFE seal to prevent the valve pallets from sticking when sticky substances are used and to enable the use of corrosive fluids. After the overpressure is released, the valve re-seats and provides a tight seal.
Main Component – PROTEGO® Flame Arrester Unit
If the set pressure is exceeded, explosive gas/product vapor/ air mixtures are released into the atmosphere. If this mixture ignites, the integrated PROTEGO® Flame Arrester Unit (3) prevents flame transmission into the tank. If additional mixture continues to flow and stabilized burning occurs, the integrated PROTEGO® Flame Arrester Unit prevents flashback as a result of endurance burning. The valve is protected and also fulfils its function under these severe conditions. The spring-loaded weather hood opens as soon as the melting element (4) melts.
Many Individual Certifications
The valve can be used at an operating temperature of up to +60°C / 140°F and meets the requirements of European Tank Design Standard EN 14015 (Appendix L) and ISO 28300 (API 2000).
EU conformity according to the currently valid ATEX directive. Approvals according to other national/international regulations on request.
Product Data

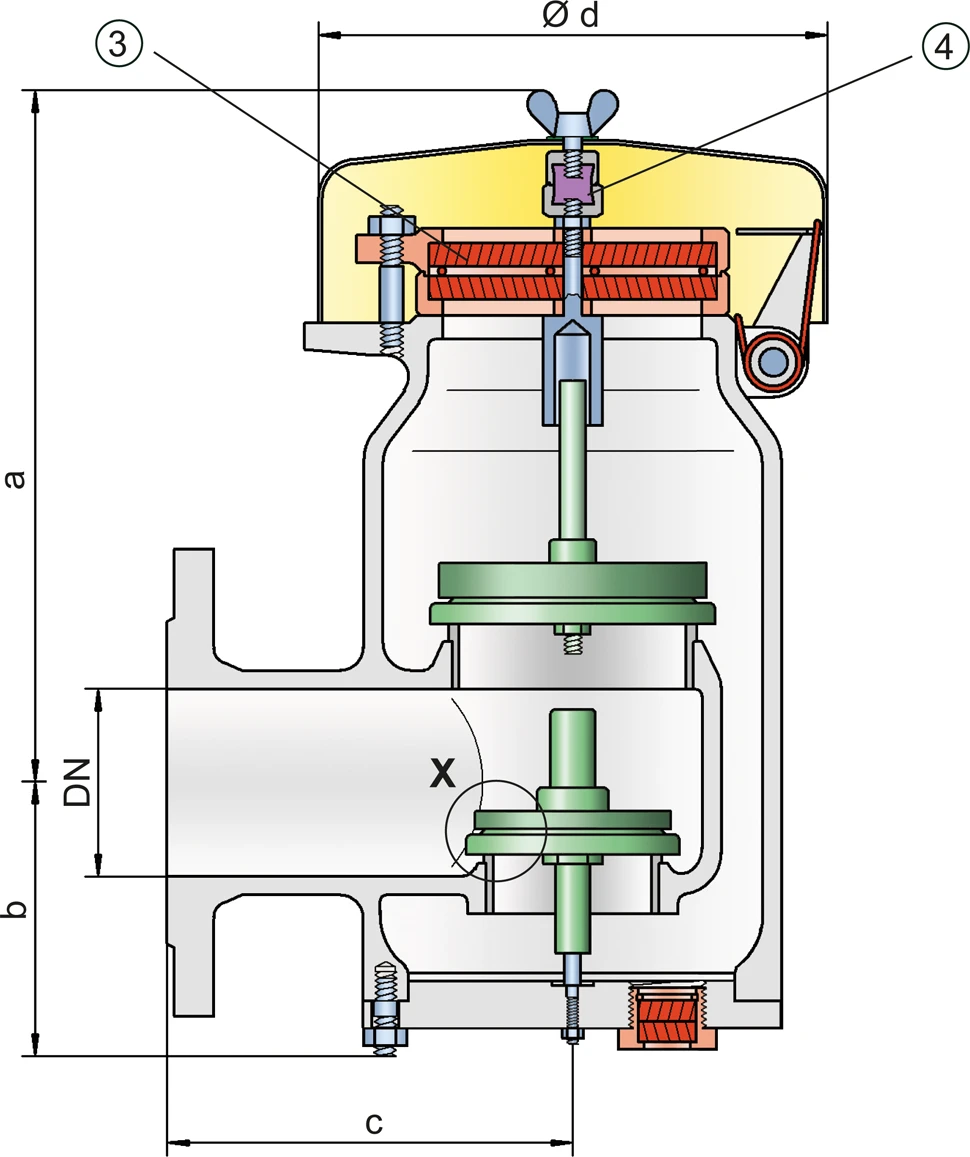

Dimensions
To select the nominal size (DN), please use the flow capacity chart on the following page
| DN | 50 / 2" | 50 / 2" | 80 / 3" | 80 / 3" | |
| Set pressure | ≤ +60 mbar | > +60 mbar | ≤ +60 mbar | > +60 mbar | |
| Set pressure | ≤ +24.1 inch W.C. | > +24.1 inch W.C. | ≤ +24.1 inch W.C. | > +24.1 inch W.C. | |
| a | 308 / 12.13 | 443 / 17.44 | 308 / 12.13 | 443 / 17.44 | |
| b | 108 / 4.25 | 108 / 4.25 | 108 / 4.25 | 108 / 4.25 | |
| c | 165 / 6.50 | 165 / 6.50 | 167 / 6.57 | 167 / 6.57 | |
| d | 218 / 8.58 | 218 / 8.58 | 218 / 8.58 | 218 / 8.58 |
Dimensions in mm / inches
Dimensions for pressure/ vacuum relief valve with heating jacket upon request
Selection of explosion group
| MESG | Expl. Gr. (IEC / CEN) | Gas Group (NEC) |
| > 0,90 mm | IIA | D |
Special approvals upon request
Material selection for housing
| Design | B | C |
| Housing | Steel | Stainless Steel |
| Heating jacket(PV / EB-H-...) | Steel | Stainless Steel |
| Valve seat | Stainless Steel | Stainless Steel |
| Weather hood | Steel | Stainless Steel |
Special materials upon request
Material combinations of flame arrester unit
| Design | A |
| FLAMEFILTER® cage | Stainless Steel |
| FLAMEFILTER® | Stainless Steel |
| Spacer | Stainless Steel |
Special materials upon request
Material selection for pressure valve pallet
| Design | A | B | C | D |
| Pressure range [mbar] [inch W.C.] | +2.0 up to +3.5 +0.8 up to +1.4 | >+3.5 up to +14 >+1.4 up to +5.6 | >+14 up to +210 >+5.6 up to +84 | >+35 up to +210 >+14 up to +84 |
| Valve pallet | Aluminium | Stainless Steel | Stainless Steel | Stainless Steel |
| Sealing | FEP | FEP | Metal to Metal | PTFE |
Special materials and higher pressure settings upon request
Material selection for vacuum valve pallet
| Design | A | B | C | D |
| Vacuum range [mbar] [inch W.C.] | -3.5 up to -5.0 -1.4 up to -2.0 | <-5.0 up to -14 <-2.0 up to -5.6 | <-14 up to -35 <-5.6 up to -14 | <-14 up to -35 <-5.6 up to -14 |
| Valve pallet | Aluminium | Stainless Steel | Stainless Steel | Stainless Steel |
| Sealing | FEP | FEP | Metal to Metal | PTFE |
Special material as well as higher set vacuum upon request
Flange connection type
| EN 1092-1; Form B1 |
| ASME B16.5 CL 150 R.F. |
other types upon request
Flow Capacity Chart
The flow capacity charts have been determined with a calibrated and TÜV certified flow capacity test rig. Volume flow V in (m³/h) and CFH refer to the standard reference conditions of air ISO 6358 (20°C, 1bar). For conversion to other densities and temperatures refer to Sec. 1: “Technical Fundamentals”.
Detail X
Detail X
